Vinduino R4 assembly instructions

Step 1 Connect antenna assembly

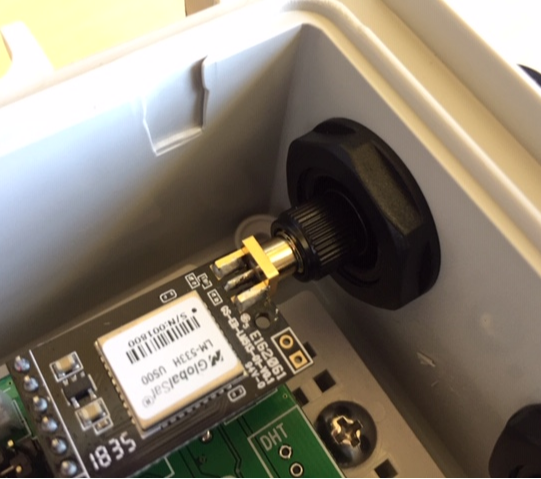

To assemble the antenna, first gently connect the antenna to the radio module.

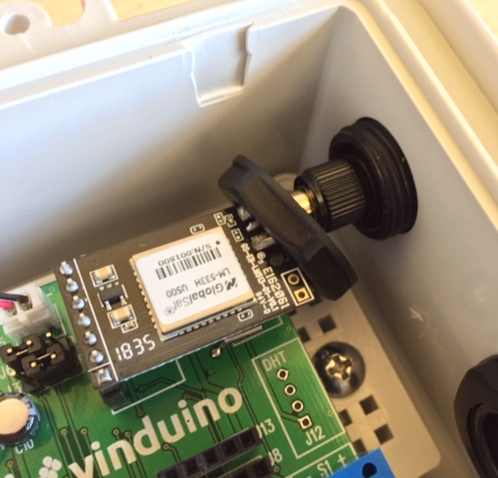

Fasten the grommet from the inside.

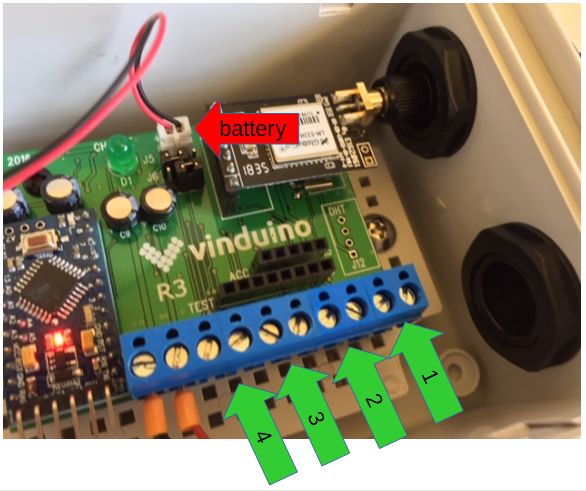

Connect the Watermark soil moisture sensors to wire terminals 1-4.
Insert the battery connector to start the system.

When operating, make sure that the solar panel on the back of the enclosure catches enough light.
When not operating, always disconnect the battery connector.
Deep battery discharge reduces battery life.
